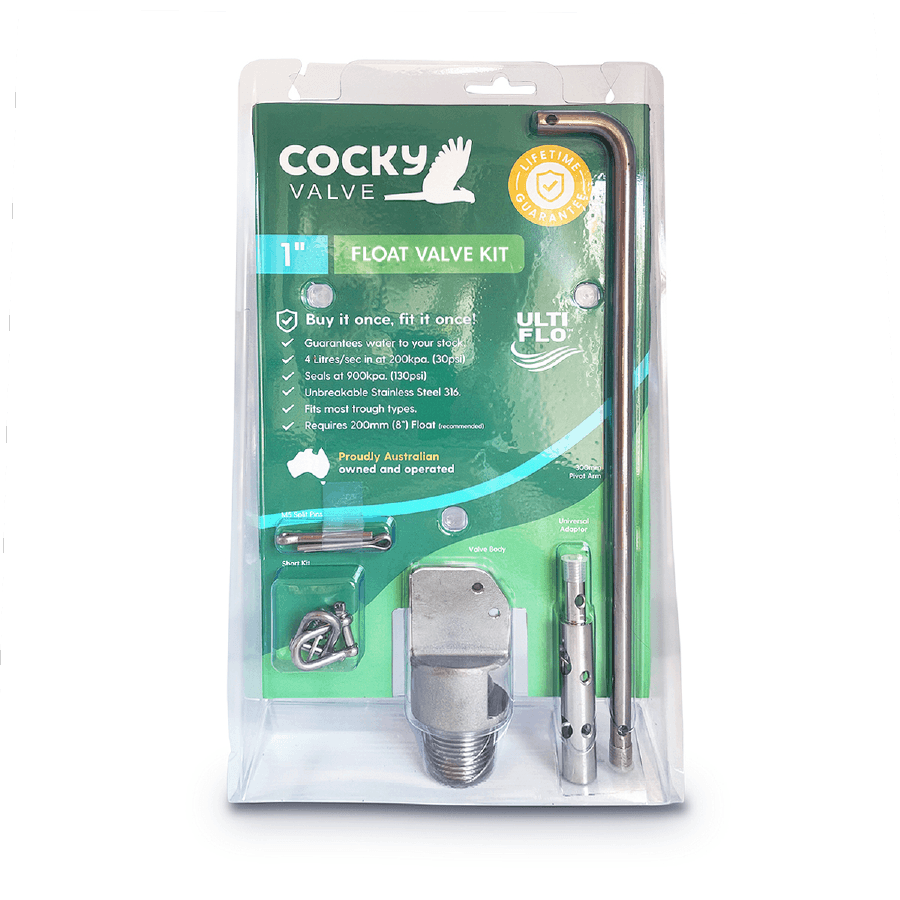

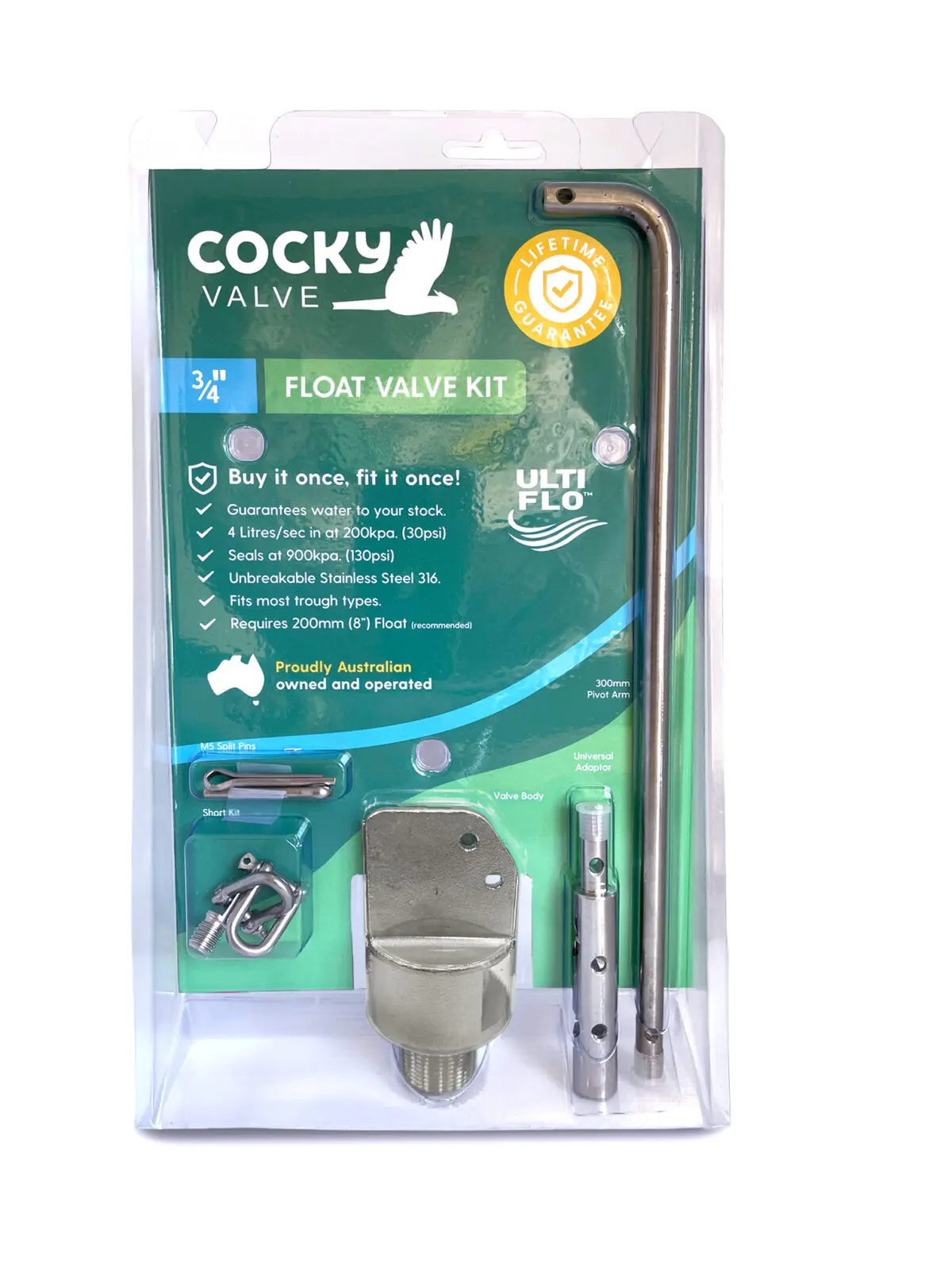

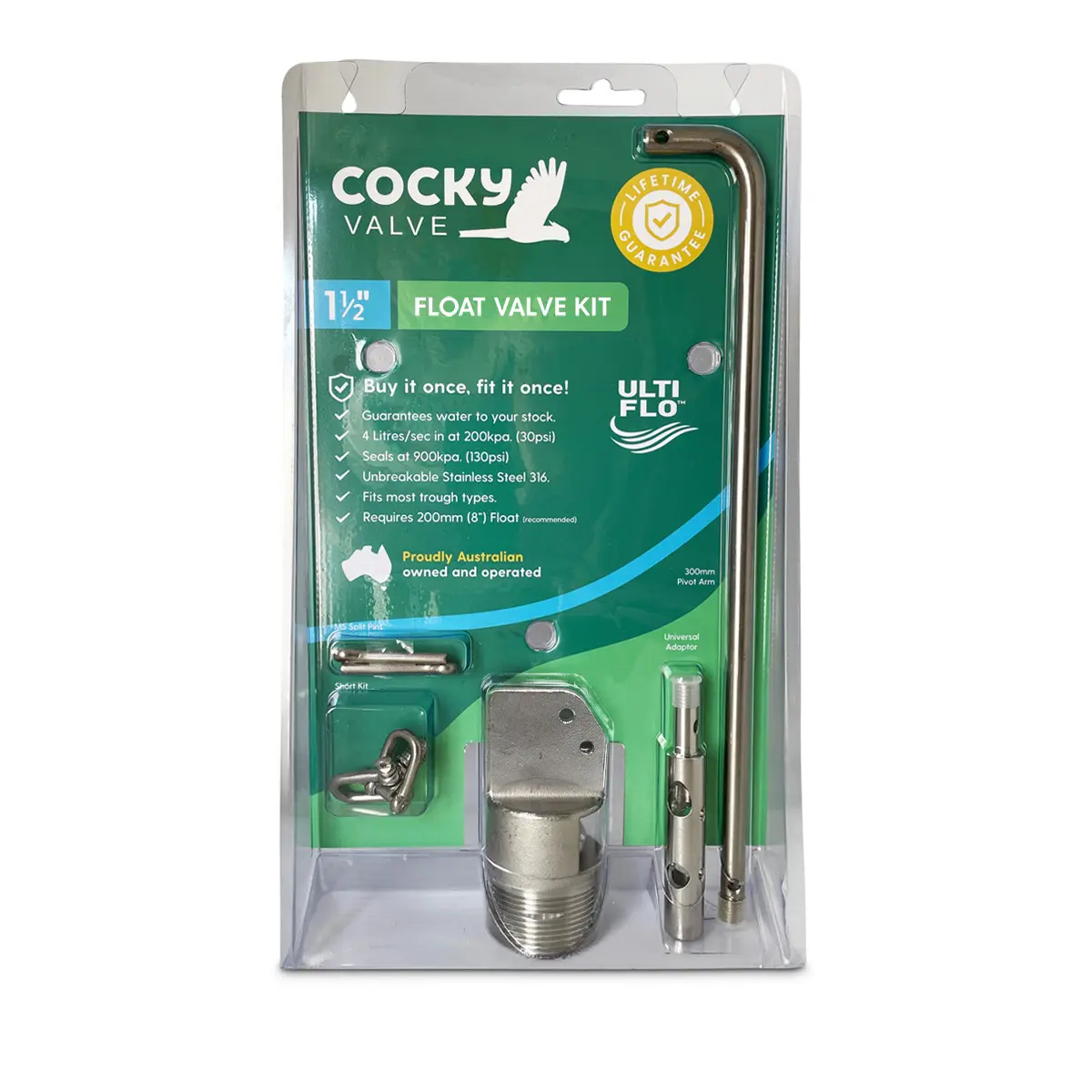

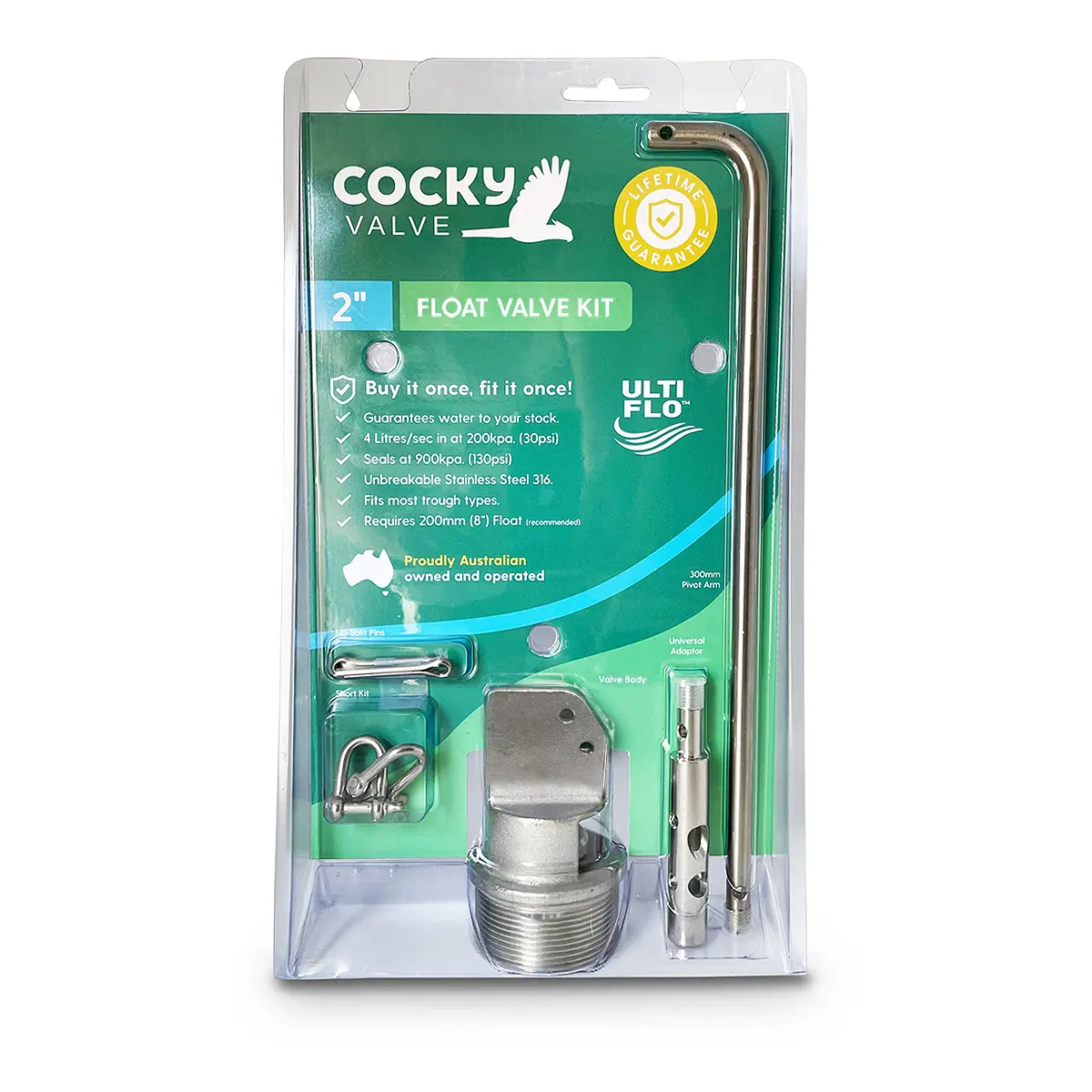

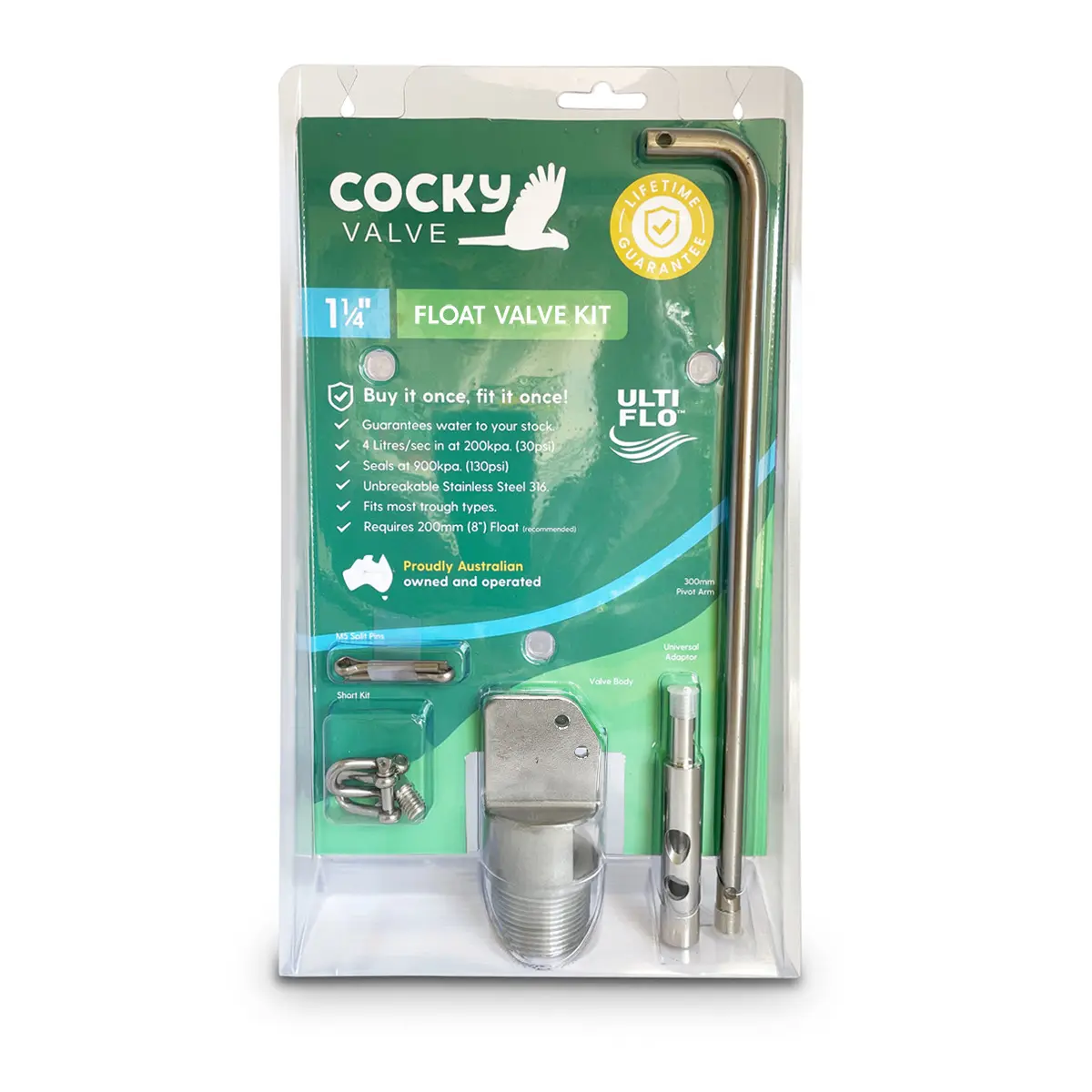

Ulti Flo Float Valve Kit

$182.00 - $217.00

SKU: N/A Category:

The Ulti-Flo Float Valve Kit is a robust, premium-grade stainless steel valve assembly designed for seamless, maintenance-free service. Each kit includes the valve body, pivot arm, Short Kit components, and a universal adaptor. Engineered for adaptability and durability, it’s backed by a lifetime guarantee when installed correctly.

  • Ulti Flow valve Body with a 1” BSPT thread and a 1” (25mm) bore.
  • 300mm M10 Pivot Arm.
  • Short Kit (Contains 2 x M5 Dee shackles with 1 x M10 threaded nipple)
  • 2 x M5 split pins.
  • Patented Universal Adaptor which allows for 12 different float locations.
  • 8” float recommended but NOT Included in kit. Must be purchased separately.

Lifetime Guarantee

You won’t find a stronger or more reliable stock trough float valve – we guarantee it. Cocky Valve offers a lifetime guarantee against breakage when installed as recommended, so if it breaks – we’ll replace it for free!

Have a question about this product?

Not only are our products reliable, we are too. Give us a call or send us an email using the details here.  No matter where you are or what the question is, we’re here to offer advice and guidance so you can get your order in and get back to the important things as quickly as possible!

1. How durable is the kit?

All parts are made from 316-grade stainless steel with fully clamped M10 threaded inserts, ensuring exceptional strength and resistance to corrosion—supported by a lifetime guarantee against breakage when installed as recommended.

2. What pressure and flow performance can I expect?

Functions across very low (≤ 5 psi / 30 kPa) to very high pressures (≥ 150 psi / 1050 kPa), with standard shut-off around 900 kPa (130 psi) using a 200 mm float and 300 mm arm. Capable of delivering up to 4 L/s at 200 kPa and over 12 L/s at higher pressures.

3. Is installation flexible for different setups?

Yes—features an integrated deflector in the valve body enabling installation above or below the water level. The universal adaptor allows 12 float mounting positions, offering maximum adaptability to various tank or trough configurations.

Product Information

The Ulti-Flo Float Valve Kit is a robust, premium-grade stainless steel valve assembly designed for seamless, maintenance-free service. Each kit includes the valve body, pivot arm, Short Kit components, and a universal adaptor. Engineered for adaptability and durability, it’s backed by a lifetime guarantee when installed correctly.

What the Product Contains
  • Ulti Flow valve Body with a 1” BSPT thread and a 1” (25mm) bore.
  • 300mm M10 Pivot Arm.
  • Short Kit (Contains 2 x M5 Dee shackles with 1 x M10 threaded nipple)
  • 2 x M5 split pins.
  • Patented Universal Adaptor which allows for 12 different float locations.
  • 8” float recommended but NOT Included in kit. Must be purchased separately.
Why Choose Cocky Valve?

Lifetime Guarantee

You won’t find a stronger or more reliable stock trough float valve – we guarantee it. Cocky Valve offers a lifetime guarantee against breakage when installed as recommended, so if it breaks – we’ll replace it for free!

Have a question about this product?

Not only are our products reliable, we are too. Give us a call or send us an email using the details here.  No matter where you are or what the question is, we’re here to offer advice and guidance so you can get your order in and get back to the important things as quickly as possible!

Product FAQs

1. How durable is the kit?

All parts are made from 316-grade stainless steel with fully clamped M10 threaded inserts, ensuring exceptional strength and resistance to corrosion—supported by a lifetime guarantee against breakage when installed as recommended.

2. What pressure and flow performance can I expect?

Functions across very low (≤ 5 psi / 30 kPa) to very high pressures (≥ 150 psi / 1050 kPa), with standard shut-off around 900 kPa (130 psi) using a 200 mm float and 300 mm arm. Capable of delivering up to 4 L/s at 200 kPa and over 12 L/s at higher pressures.

3. Is installation flexible for different setups?

Yes—features an integrated deflector in the valve body enabling installation above or below the water level. The universal adaptor allows 12 float mounting positions, offering maximum adaptability to various tank or trough configurations.
